Dual 400 High Performance System
SKU 400DB01

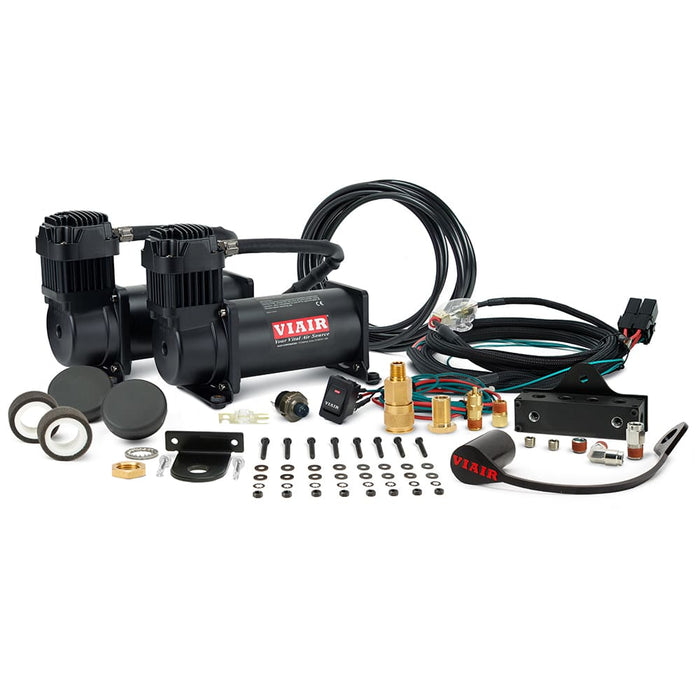

P/N 400DB01 – 150 PSI / 5.12 CFM – STEALTH BLACK

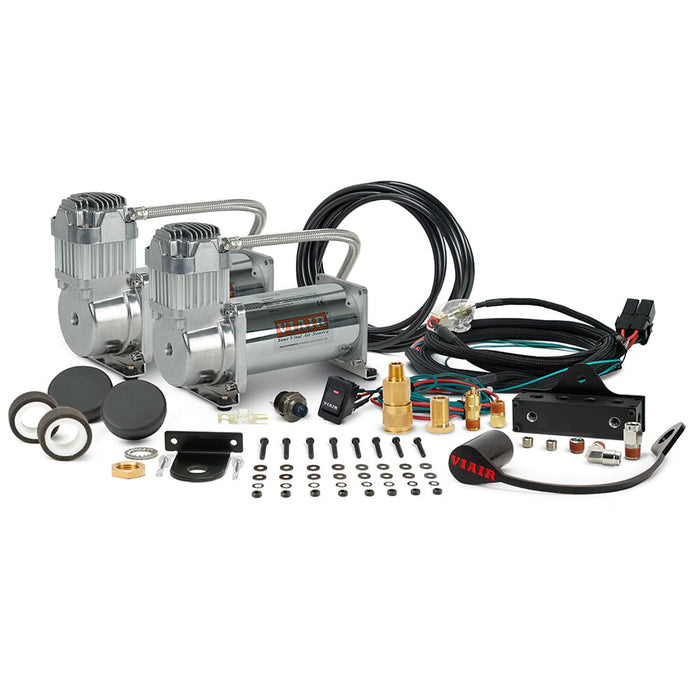

P/N 400DC01 – 150 PSI / 5.12 CFM – CHROME
VIAIR Mounted Systems (VMS) are high quality on board compressed air systems designed to provide high CFM flow and fast fill time with unsurpassed durability. These systems come with everything that is necessary to install a fully functioning on board air system. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.
FEATURES
– (2) 400C (Stealth Black or Chrome) Compressors w/ Thermal Overload Protectors
– Complete dual wiring harness w/ 80A fuse holder.
– Air Locker compatible
– Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
– Designed to be air tank ready (Air tank optional)
– 8-Port Billet Manifold
– Pro Series Air Source Relocation Kit
– Illuminated Rocker Switch
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Duty Cycle: 100% @ 40 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 10.0 Gallon
– Combined Max. Amp Draw: 60-Amps
– Ingress Protection Rating: IP67
– Max Ambient Temp: +158°F
– Min Ambient Temp: -40°F
– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
– Net Weight: 25 lbs.
RECOMMENDED COMPONENTS
– VIAIR® Tire inflation kit
– VIAIR® Air Tank
– VIAIR® Inline Pressure Regulator
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
VIAIR® stated performance claims are verified for truth and accuracy using calibrated proprietary test equipment and procedures.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
5.12 |
27 |
0 |
145 |
27 |
| 10 |
4.77 |
33 |
1.0 |
125 |
38 |
| 20 |
4.24 |
41 |
2.0 |
119 |
46 |
| 30 |
4.17 |
45 |
3.0 |
95 |
50 |
| 40 |
3.53 |
48 |
4.0 |
90 |
52 |
| 50 |
3.35 |
51 |
5.0 |
85 |
53 |
| 60 |
3.18 |
52 |
6.0 |
78 |
54 |
| 70 |
3.00 |
53 |
7.0 |
70 |
54 |
| 80 |
2.83 |
54 |
8.0 |
65 |
53 |
| 90 |
2.65 |
54 |
9.0 |
61 |
53 |
| 100 |
2.54 |
54 |
10.0 |
55 |
52 |
| 110 |
2.30 |
54 |
|
|
|
| 120 |
2.22 |
53 |
|
|
|
| 130 |
2.17 |
53 |
|
|
|
| 140 |
2.05 |
52 |
|
|
|
| 150 |
1.77 |
51 |
|
|
|
* Supply Voltage: 13.8 Volts
TIRE FILL RATES
| 35″ X 12.5″ |
FILL RATE |
| 0 to 40 PSI |
4 min. 15 sec. (± 15 sec.) |
| 10 to 40 PSI |
3 min. 15 sec. (± 10 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
4 min. 55 sec. (± 15 sec.) |
| 10 to 40 PSI |
3 min. 45 sec. (± 10 sec.) |
TANK FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
1 min. 10 sec. (± 05 sec.) |
| 110 to 145 PSI |
20 sec. (± 03 sec.) |
| 5.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
2 min. 21 sec. (± 10 sec.) |
| 110 to 145 PSI |
43 sec. (± 05 sec.) |
